Are you running more E85 or making more power on pump gas than your HPFP (High Pressure Fuel Pump) can support?

Looking for an inexpensive option to supply more fuel?

Then this option is for you!

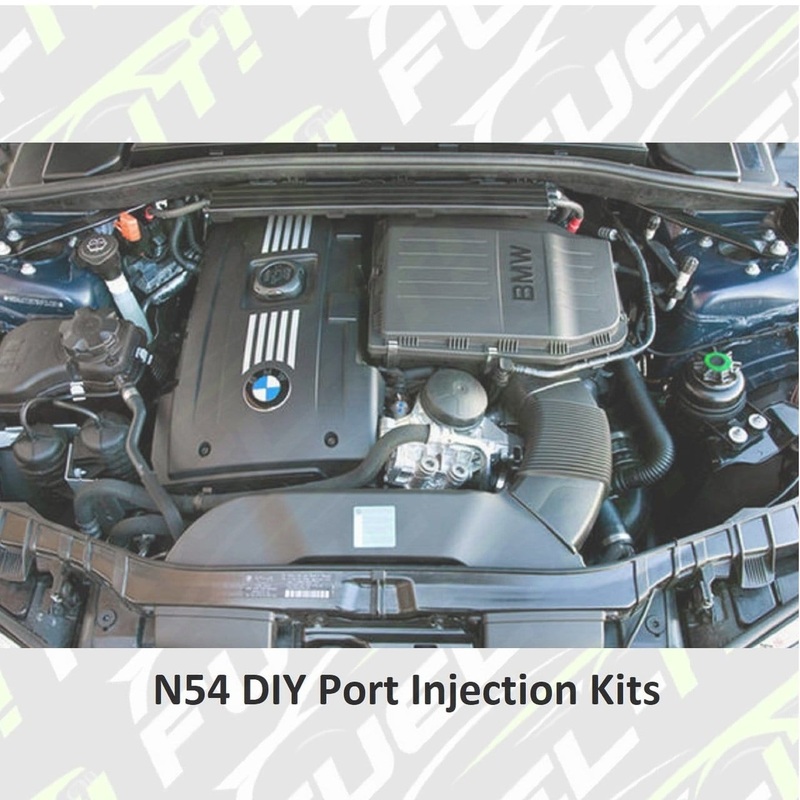

For those of you that are looking for a budget conscious kit but don’t want to sacrifice performance or reliability we have developed a DIY port injection option for your N54. This kit will provide you with the additional fueling capacity that you need to run E85 on your stock or upgraded turbos at a bargain price!

All of our DIY kits feature the following:

• Optional fuel return port
• Optional boost reference port
• 100% billet aluminum construction
• Machined to clear HPFP hardline line
• OEM gasket grooves with gasket retention tabs
• 45 degree injection angle on all cylinders for better fuel distribution across both intake valves. (No cylinder 1 offset spraying the intake runner wall)

In addition our DIY kit offers a multitude of options that lets you configure a kit to meet your power goals and still stay within budget! Simply follow our easy step by step selections to complete your custom kit.

Step 1: Choose Your Platform

• Let us know what car you’ll be installing your new port injection kit on so we can configure your options accordingly.

Step 2: Choose Your Injectors

• Our kits require Bosch 42mm injectors and we have two flow matched options for you to choose from.
• 550cc injectors are recommended for up to 700whp on E85 or 600whp on methanol
• 750cc injectors are recommended for over 700whp on E85 or 600whp on methanol. Other than the additional expense there aren’t any drawbacks to running the larger injectors.

Step 3: Choose Your Fuel Source

• I will be running upgraded fuel lines
• Select this option if you will be doing a fuel linen upgrade of supplying your own lines.
• Low Pressure Fuel Line
• Select this option if you will be tapping in to the stock low pressure fuel system and we will include our exclusive Cam-Lock! fuel fitting that can be installed just before the HPFP.
• Methanol Kit
• If you will be running methanol as your secondary fuel source, select this option and we will include a 36 inch -6an stainless steel braided fuel line and adapter for your existing 1/4″ meth line.

Step 4: Upgrade Your Fuel Lines

• Select this option to upgrade your stock fuel lines to E85 compatible -6an fuel lines (requires that you have selected the Low Pressure Fuel Line as your fuel source).
• If you already have our ethanol sensor, let us know when you order and we will cut your line to the correct length and install the correct connector for you.
• Stage 4 LPFP option:
• Select this option to upgrade your fuel pump to Stage 4, dual -AN6 supply lines, and a 6um E85 compatible fuel filter. $150 refundable core deposit included. (135i and 335i only)

Step 5: Add an Ethanol Sensor and Bluetooth Analyzer (requires upgraded fuel lines)

• Select this option t to run an ethanol sensor and our Bluetooth analyzer to read your ethanol content.
• There are three options to read your ethanol content when using our ethanol analyzers:
• Bluetooth only
• Bluetooth and JB4 integrated (0-5 Volt)
• Bluetooth and 50-150hz Raw Signal
• • Bluetooth (Iphone or Android app must be purchased to use this feature)
  • If you are using an Apple product the app can be found by clicking here
  • If you are using an Android product the app can be found by clicking here

Step 6: Choose Your Port Injection Controller

• To run port injection you MUST run a port injection controller as this is what controllers the additional injectors. We offer 3 options:
• BMS JB4 controller
• We recommend this option if you are running a JB4 as it integrates directly with the JB4 and can not operate without a JB4.
• Split Second Flash Only
• If you aren’t running a JB4, you’ll need to select this option.
• Split Second JB4 Integrated controller
• This options if for those that are running a JB4 and for whatever reason don’t want to run the BMS controller.

Step 7: Return Kit

• Add this option if you want to run an external fuel pressure regulator. Generally this is not needed for those customers targeting less than 650whp on E85 and can not be run with methanol.

Step 8: Basic Port Injection Assembly, Setup, and Tuning

• You are purchasing a Do It Yourself port injection kit. As such, the kit will need to be assembled and we will provide technical support for hardware assembly and installation. However we do not provide port injection tuning support for DIY purchases. If you would like your kit to be assembled and you need assistance with fueling related tuning, you’ll need to purchase this option.
• Included with your purchase is:
• Fuel rail assembly
• 90 days of port injection email tuning support to include:
• Log reviews and input
• Port injection controller map adjustments
• BMS MHD Backend flash fueling adjustments
• JB4 tuning assistance
• Not included with this purchase is:
• Remote tuning
• Custom flash tuning
• We can not adjust fueling on locked custom flash maps
• Once you purchase this option, please email us at sales@ with your order number for assistance.

Our basic DIY kit includes: (Basic kit does NOT include fuel lines or injectors)

• Fuel-It! custom spacer for the intake manifold
• Fuel-It! custom fuel rail with integrated brackets and simple 4 bolt assembly
• -6an fuel supply port
• -6an fuel return port plug
• Two 1/8″ NPT plugs
• Six OEM manifold gaskets
• Seven extended length zinc coated bolts
• Seven zinc coated washers
• Four fuel rail assembly bolts
• Two nylon rail and manifold alignment pins

*These kits are available for off-road use only

*All port injection kits are built to order so please allow 2 business days for shipping.

*Ethanol Sensors don’t actually read the ethanol content, the readings are based on the absence of gasoline, so if your fuel is contaminated, your ethanol readings may be artificially elevated.
